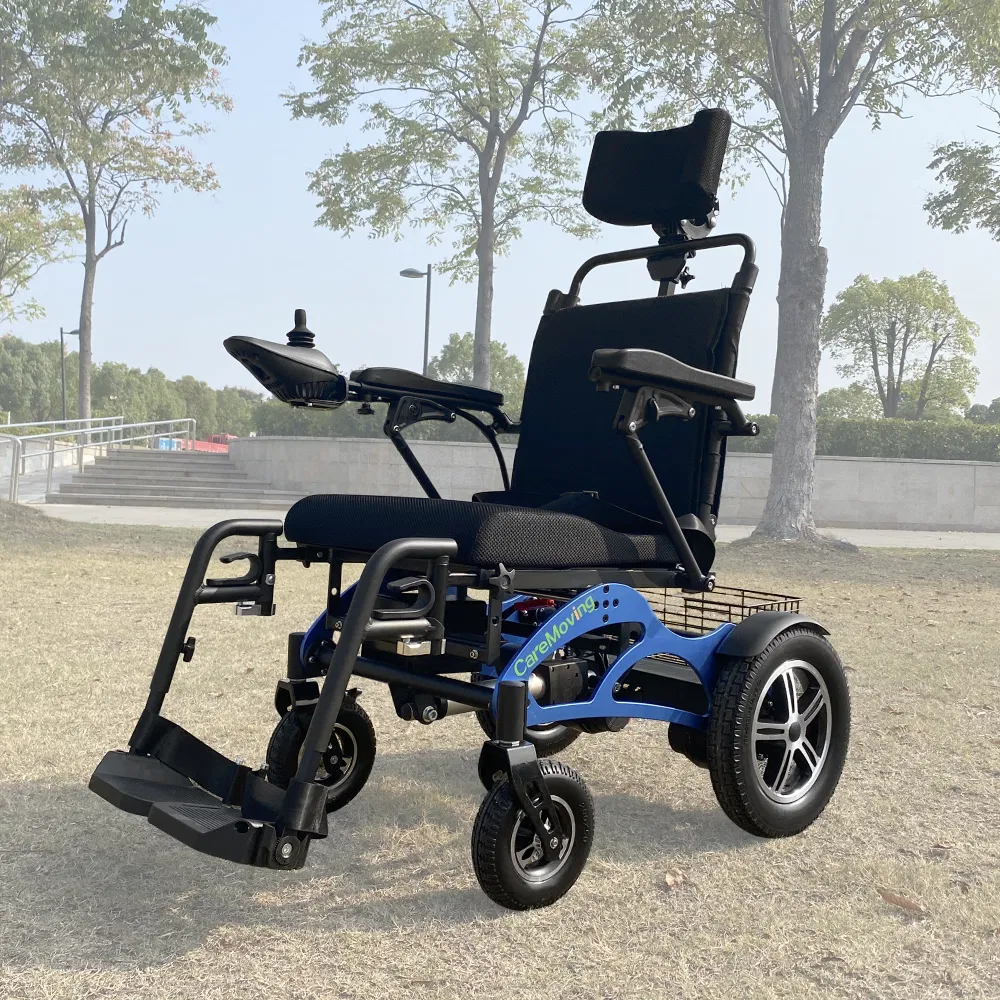

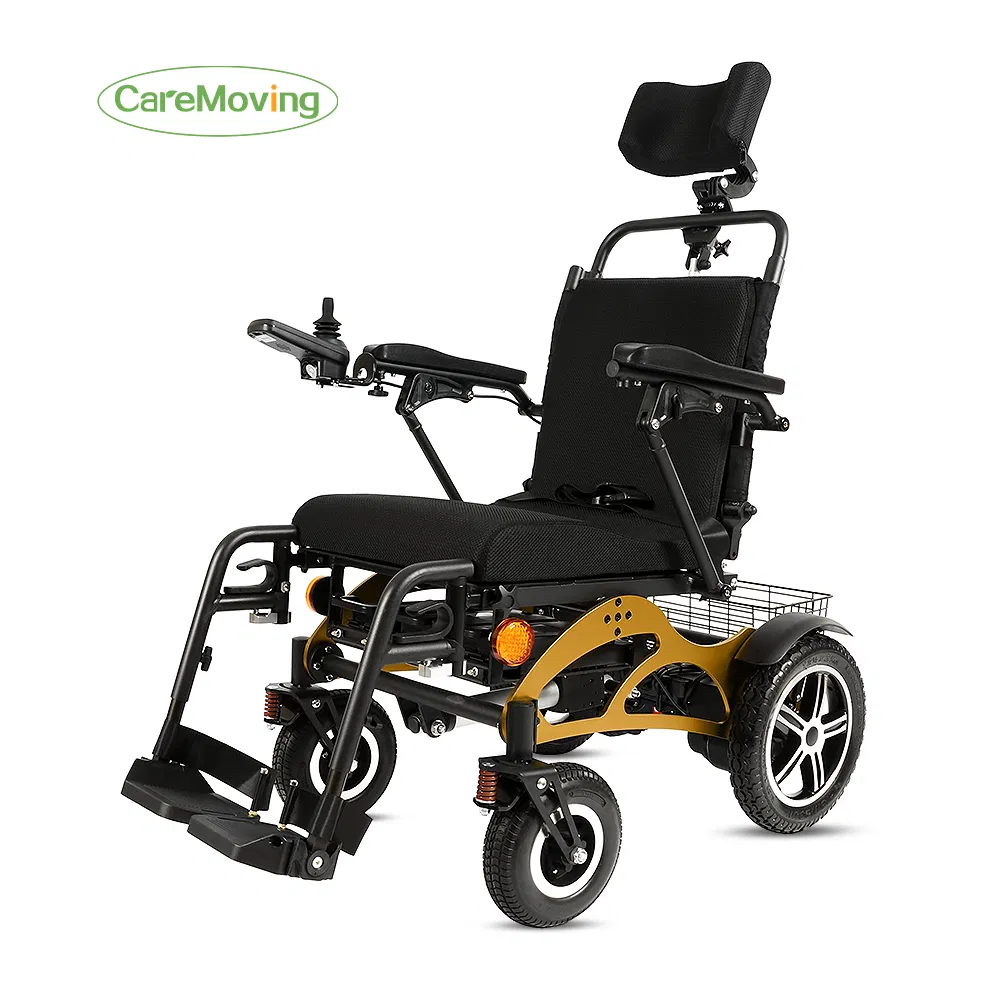

Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
1 / 5
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Tilt-in-Space Wheelchair with 40° Backrest Adjustment

Tilt-in-Space Wheelchair with 40° Backrest Adjustment

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
CMD03R
Condition
New
Tilted
Tilted
Folded
Folding
Leg Rest Type
Both Sides Separate
Material
Aluminium Alloy
Type
Electric Wheelchair
Seat/Backrest Adjustment
20°/40°
Maximum Load Weight
150kg/330lbs
Motor Power
DC24V 2*250W Brush
Battery
24V 2*6ah (Lithium)
Brake System
Electromagnetic Brake
Net Weight
40kg/88lbs
Max Speed
6km/H
Mileage
20km
Production Capacity
5000PCS/Year
♿

Product Description

Tilt-in-Space Wheelchair Main

We are a renowned manufacturer of premium electric wheelchairs and advanced mobility scooters. With over a decade of industry expertise, we proudly serve hundreds of medical rehabilitation B2B distributors. If you have customized needs, we are here to provide you with free samples.

For those purchasing for personal use, we offer single-item sales or dropshipping services. We also provide free parts replacement! Reach out to our online customer service for more information!

Product name Tilt-in-Space Wheelchair with 40° Backrest Adjustment
Material Aluminum alloy Motor power DC24V 250W*2
Brake system Electromagnetic brake Battery 24V 2*6Ah (lithium)
Maximum load weight 150kg Charger AC100-240V 50/60HZ
Output: 24V 2A
Mileage 20km Whole vehicle net weight 40.5kg
Charging time 7-8 hours Max speed 6km/h
Front wheel size 9 inch PU tire Rear wheel size 12 inch PU tire

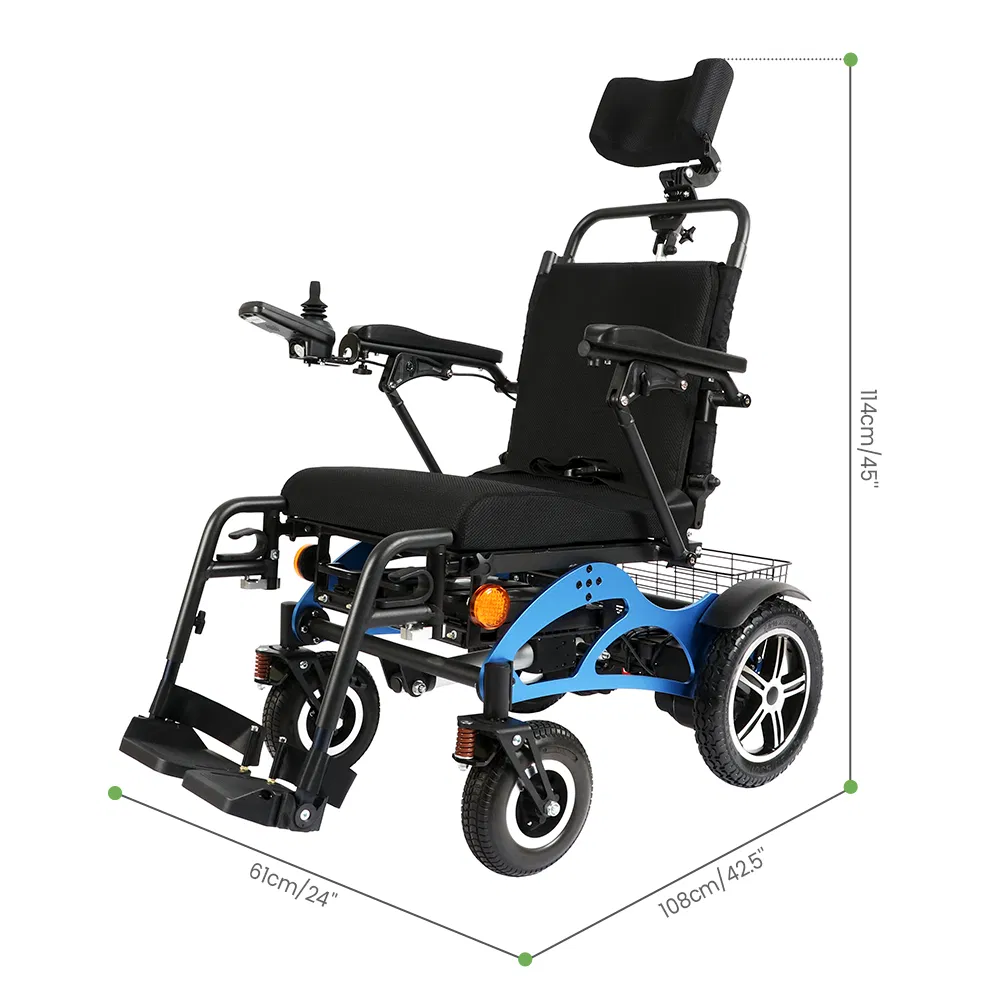

Before folding size 1080*610*1140mm After folding size 880*610*530mm

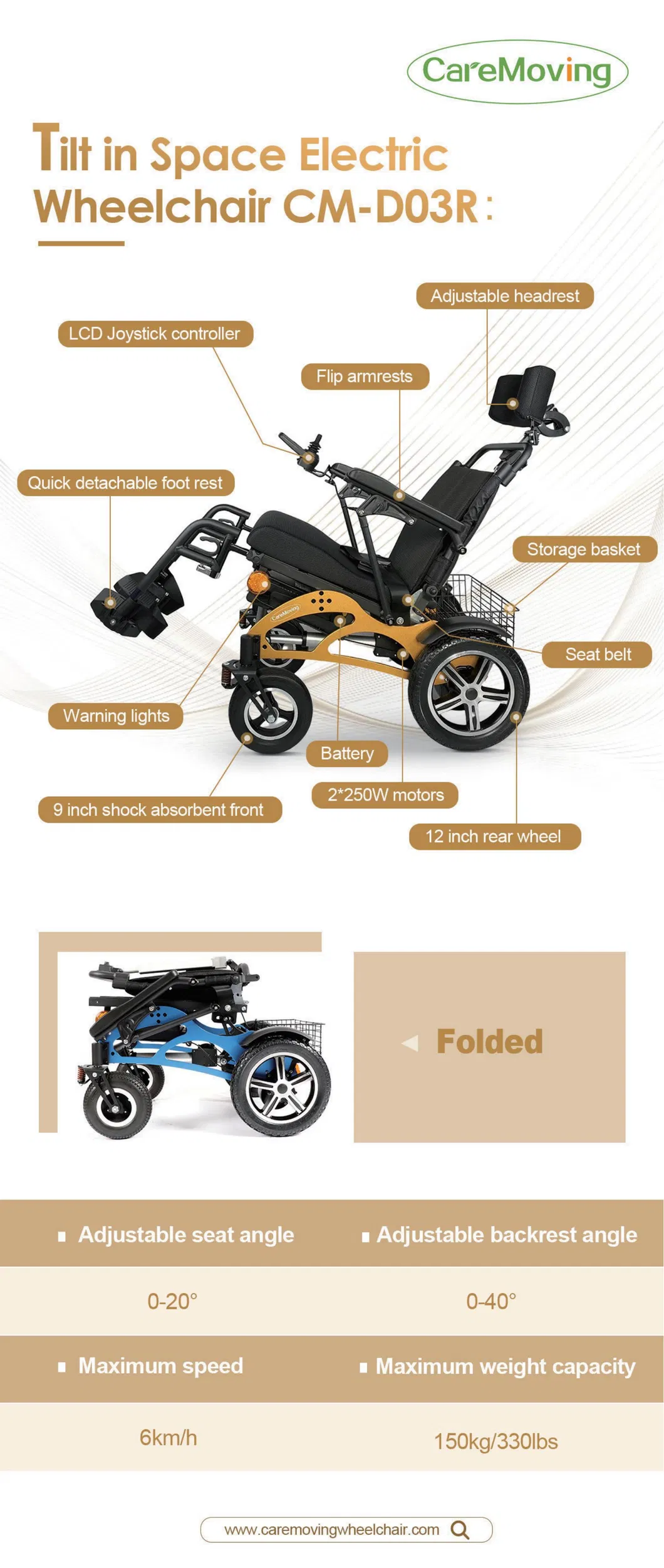

Wheelchair Detail 1

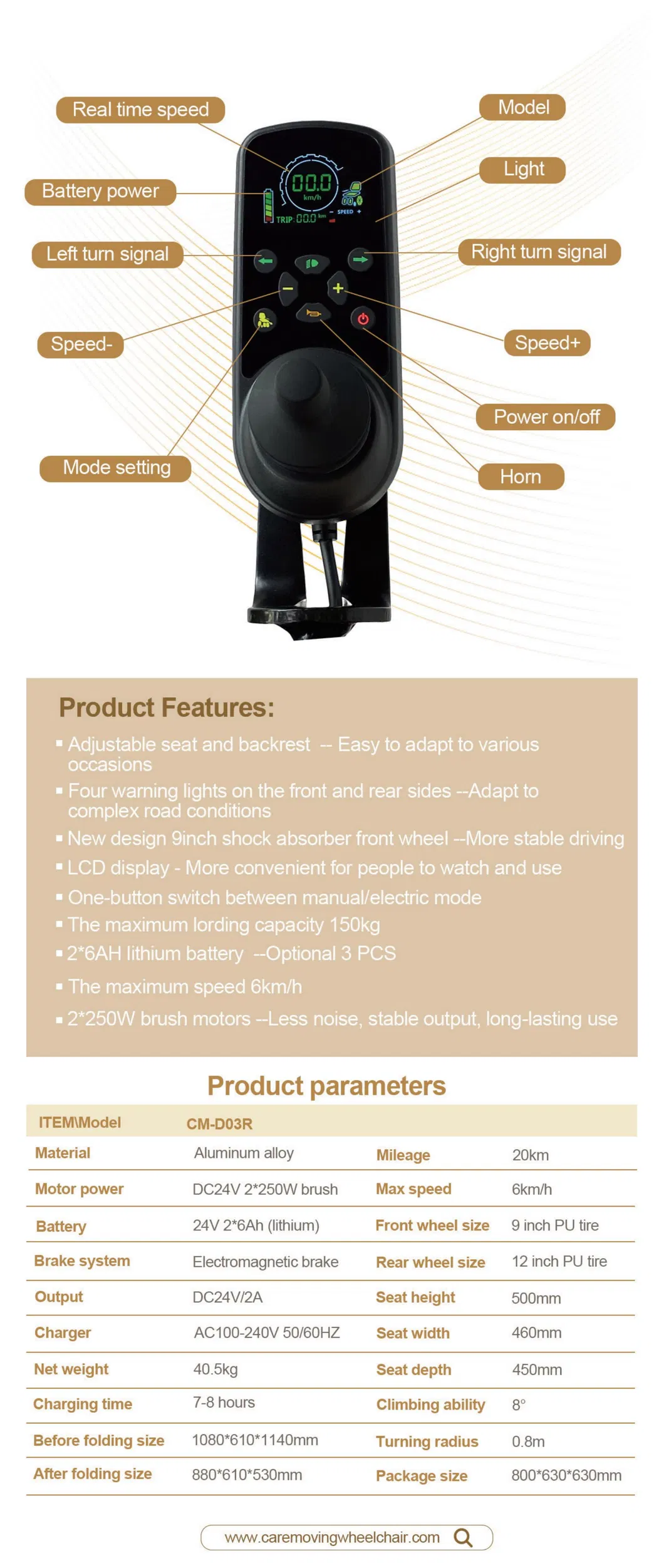

Wheelchair Detail 2
Wheelchair Detail 3

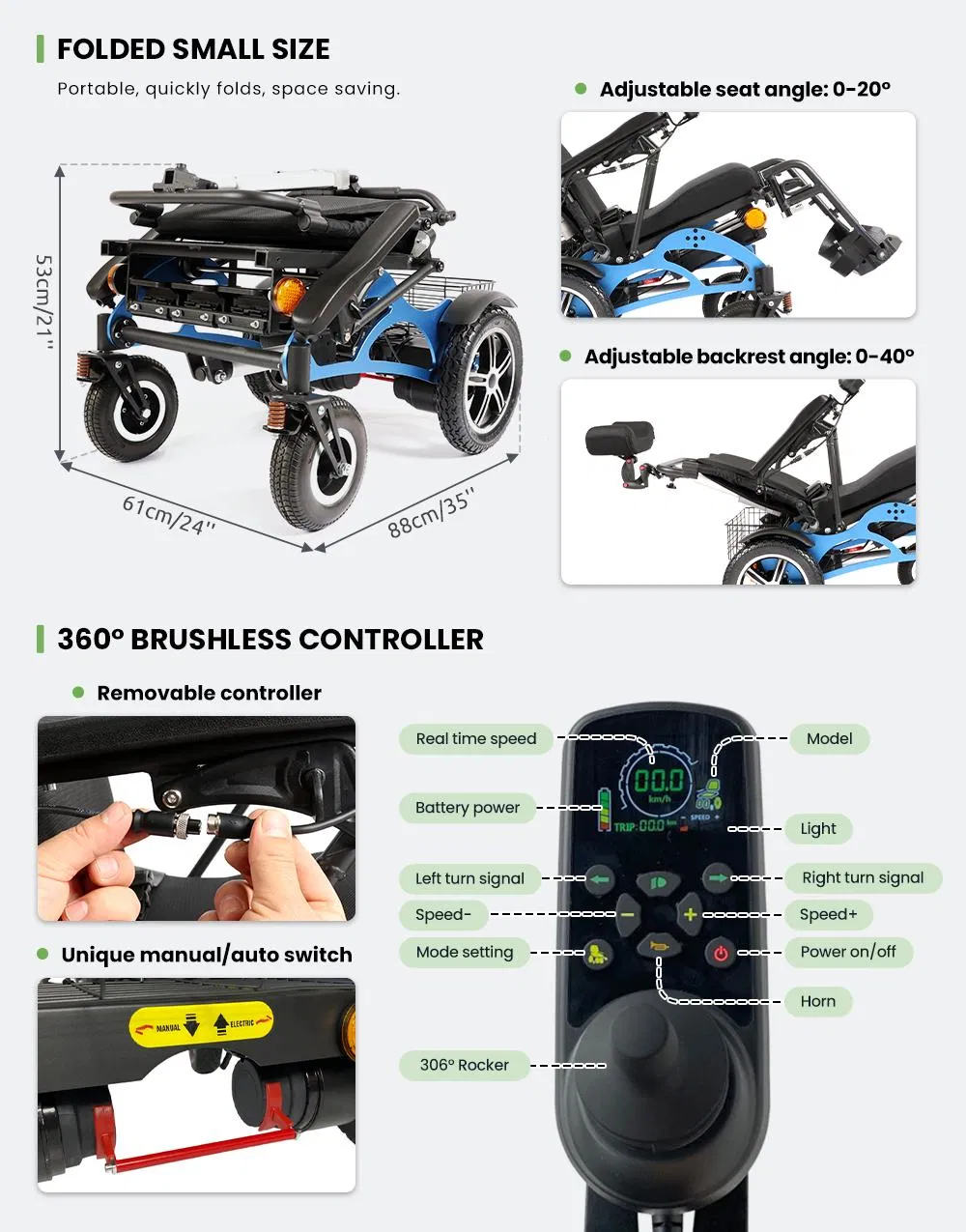

Wheelchair Detail 4
🏢

Company Profile

Established in 2017, we are a professional manufacturer and exporter specializing in electric wheelchairs, manual wheelchairs, mobility scooters, walkers, and various rehabilitation aid products.

Factory Environment
📜

Certifications

Product Certifications
📦

Packaging & Shipping

Packaging Process
❓

Frequently Asked Questions

What is the "Tilt-in-Space" feature?
The Tilt-in-Space feature allows the seat and backrest to tilt together at an angle (20° to 40°), helping to redistribute pressure and provide better comfort for long-term users.
Is this electric wheelchair foldable?
Yes, it features a folding design. The size reduces from 1080*610*1140mm to a compact 880*610*530mm for easier transport and storage.
What is the maximum weight capacity?
The wheelchair is built with a high-strength aluminum alloy frame and can support a maximum load weight of 150kg (approx. 330lbs).
How far can I travel on a single charge?
Equipped with two 6Ah lithium batteries, this wheelchair offers a driving mileage of approximately 20km per full charge, depending on terrain and user weight.
What safety features are included?
It utilizes an advanced electromagnetic brake system, which ensures the wheelchair stops immediately and safely when the controller is released, even on slopes.
Are spare parts available if needed?
Yes, we provide free parts replacement and maintain a steady supply of components to ensure long-term maintenance support for our customers.
