Aluminum Folding Electric Power Wheelchair for The Disable

1 / 5

Aluminum Folding Electric Power Wheelchair for The Disable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

EPW61-601A

Certification

Folded

Yes

Voltage

24V

Power

201-500W

Charging Time

6-8h

Wheel Hub

Aluminum Alloy

Using Ambient

Outdoor/ Indoor

Production Capacity

1000PCS/Month

Introduction

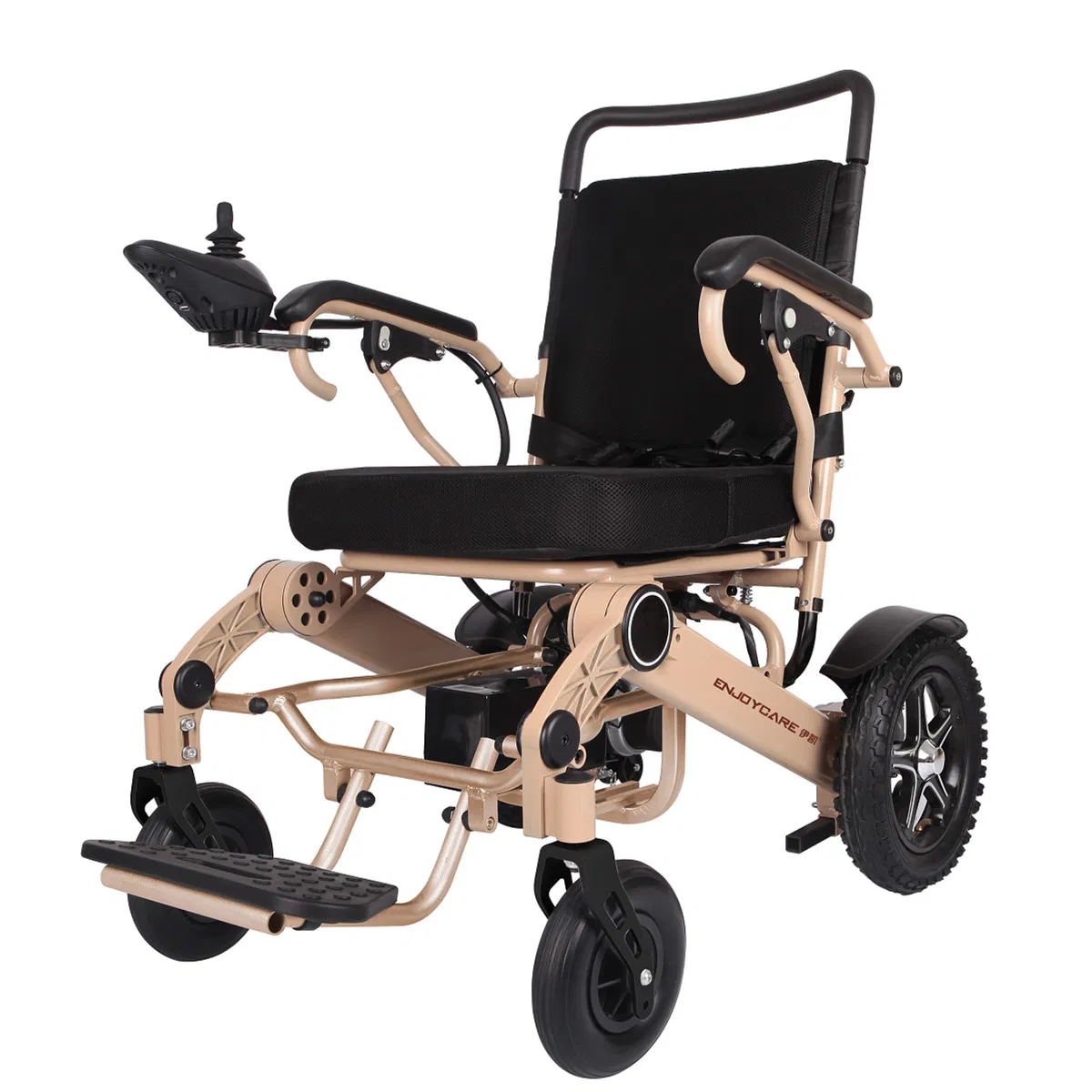

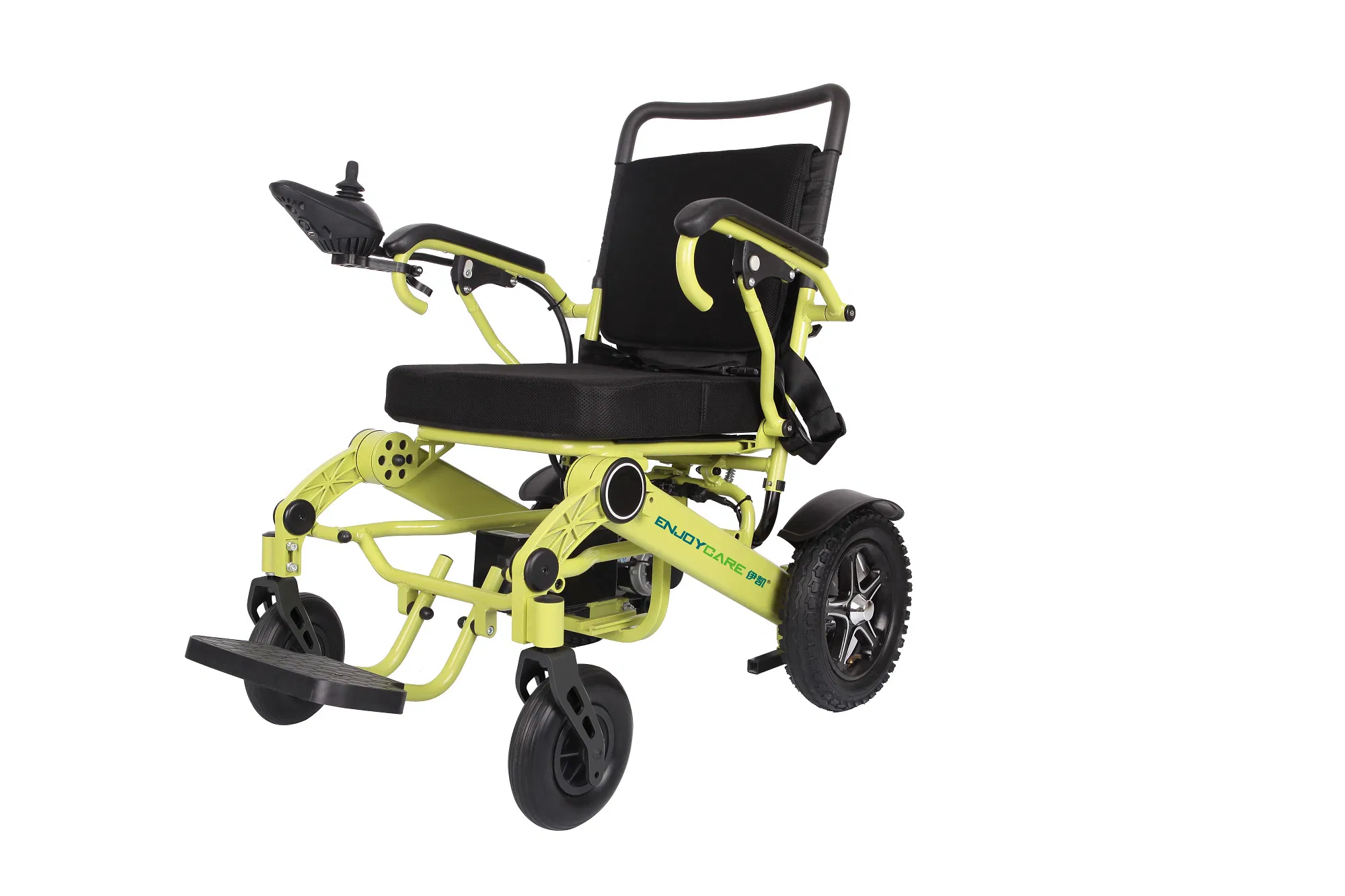

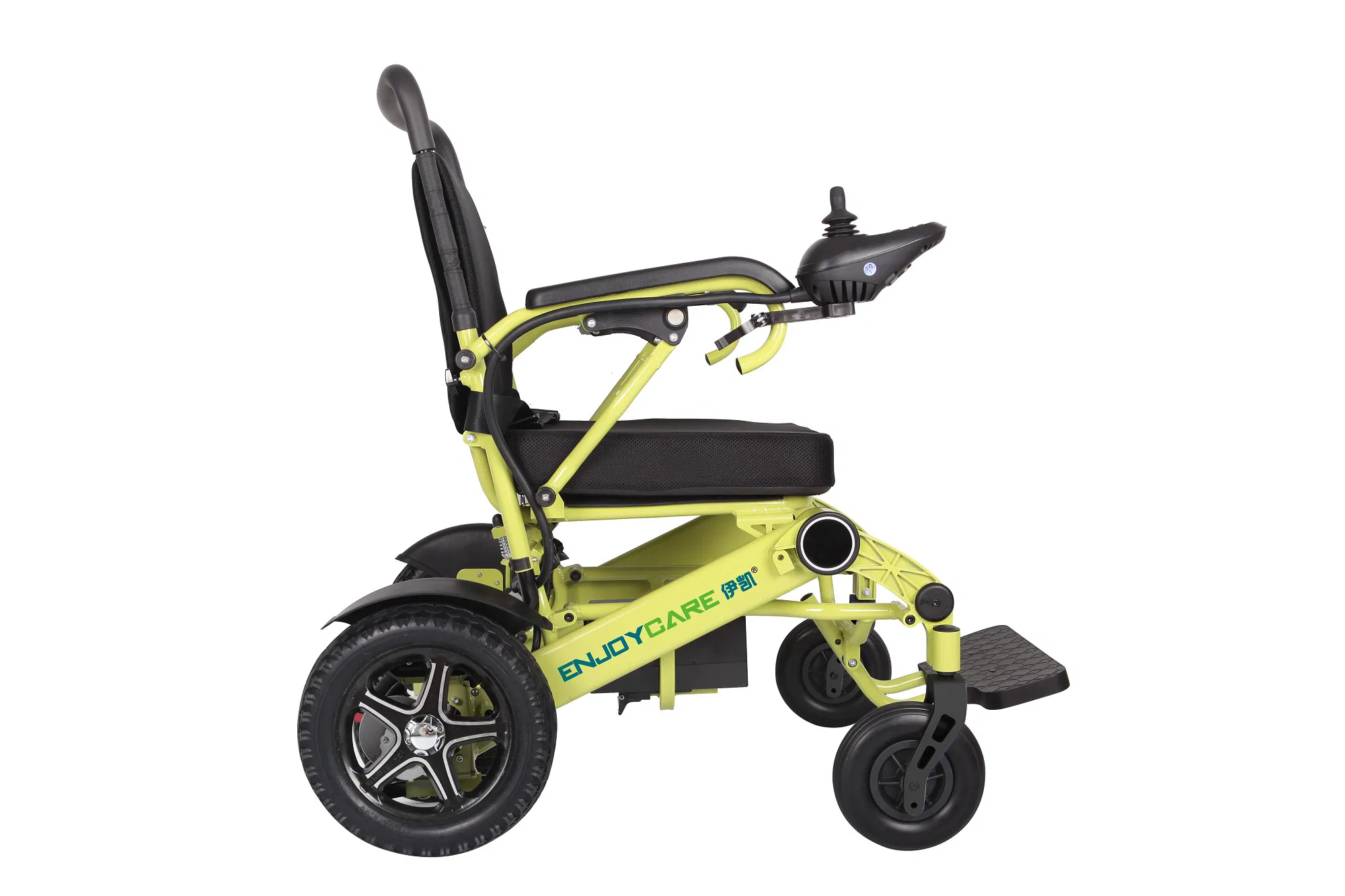

EPW61-601A is a light folding electric wheelchair, featuring an aluminum frame and lithium battery options. Designed for portability, it can be folded within seconds to fit into a car boot and is airline-friendly for travel. It is a highly popular, affordable solution exported globally to Europe, Africa, and Southeast Asia.

Technical Parameters

Dimensions	L 1100 * W 630 * H 960mm
Ground clearance	40mm
Max. forward speed	6 km/h
Max. backward speed	3 km/h
Mini Turning radius	1200 mm
Range	20 km (13AH) / 28KM (26AH)
Climbing capability	10°
Motors	24V 250W * 2 pcs
Controller	24V 35A
Brake system	Intelligent electromagnetic
Battery	24V/13AH lithium (Dual option available)
Front Tyres	200*50 mm
Rear Tyres	320mm (12 inch)
Weight Capacity	110 KGS
Net Weight	25 KGS (without battery)
Packing Size	650380780 mm

Unique Product Highlights

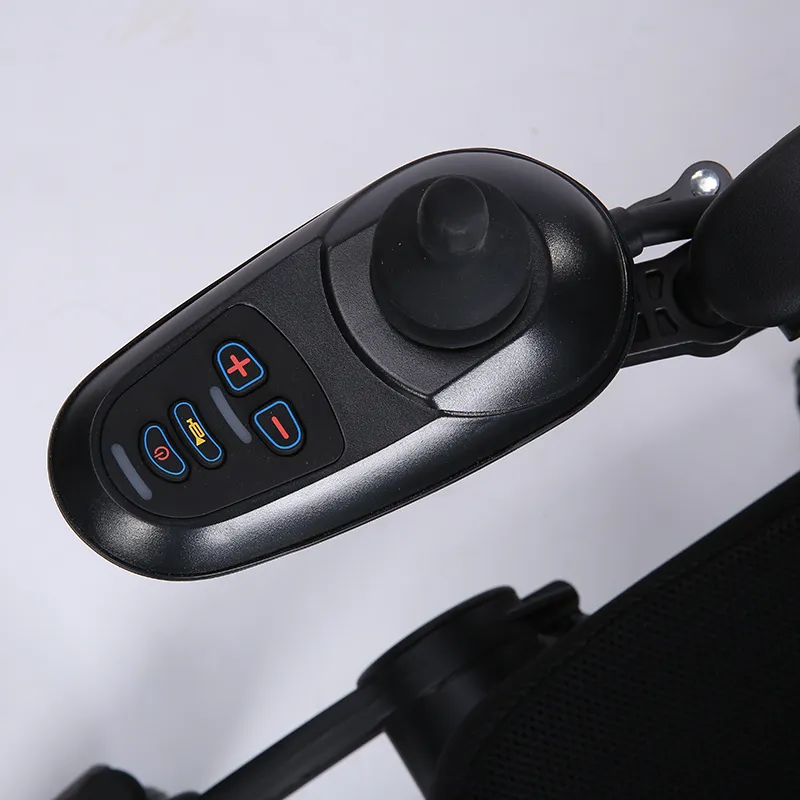

1) User-Friendly Controller

Equipped with an intuitive joystick for seamless forward, backward, and turning movements. Easily adjust speed using the "+" and "-" buttons.

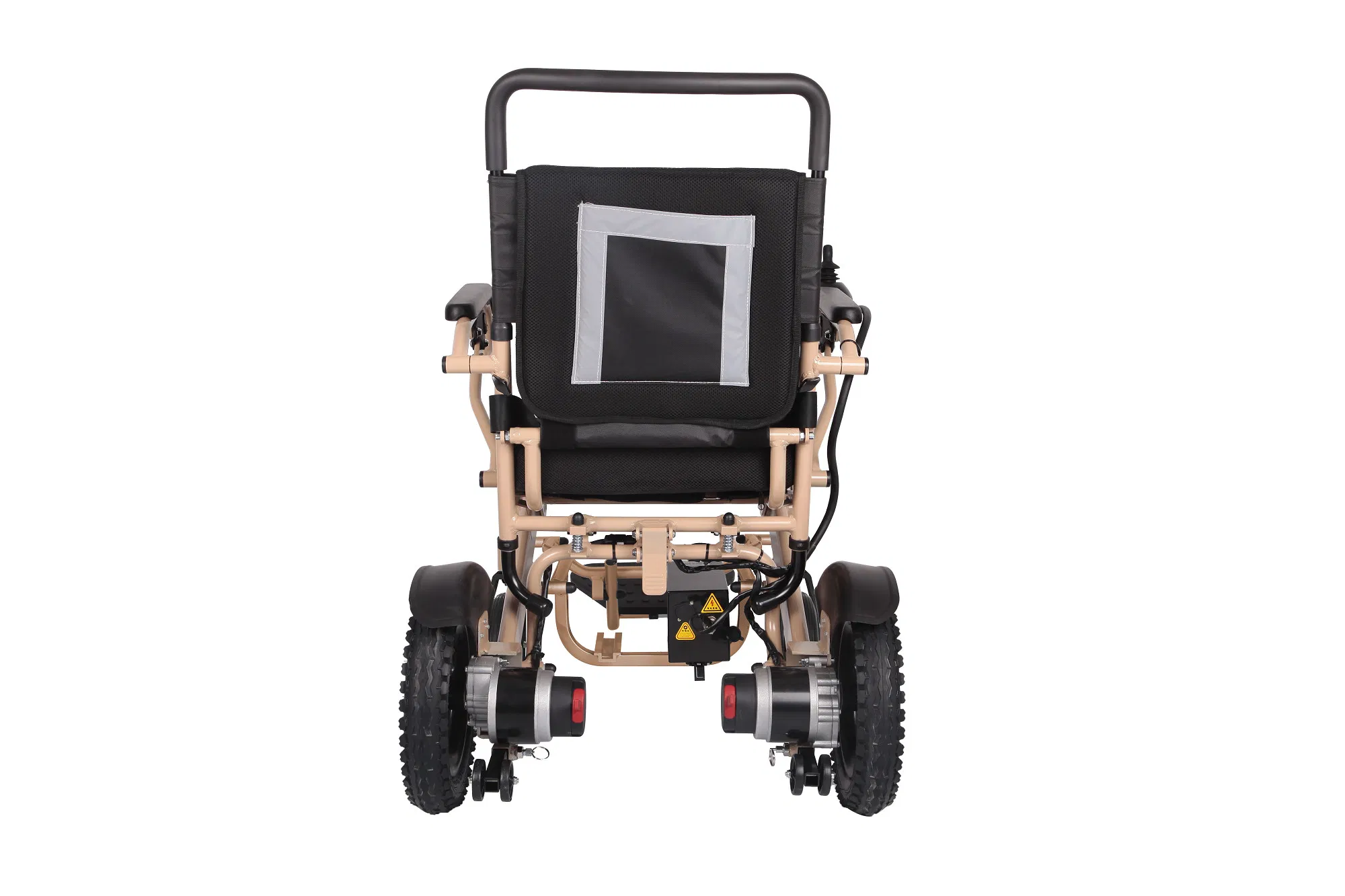

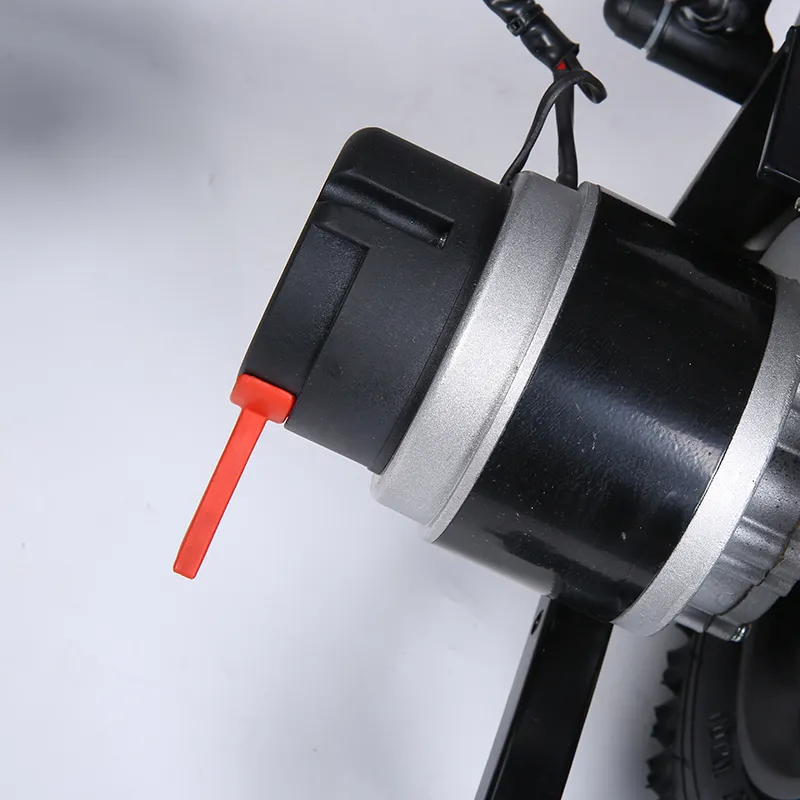

2) Dual Motors with Electromagnetic Brakes

Equipped with two powerful motors that include intelligent electromagnetic braking for safety on slopes.

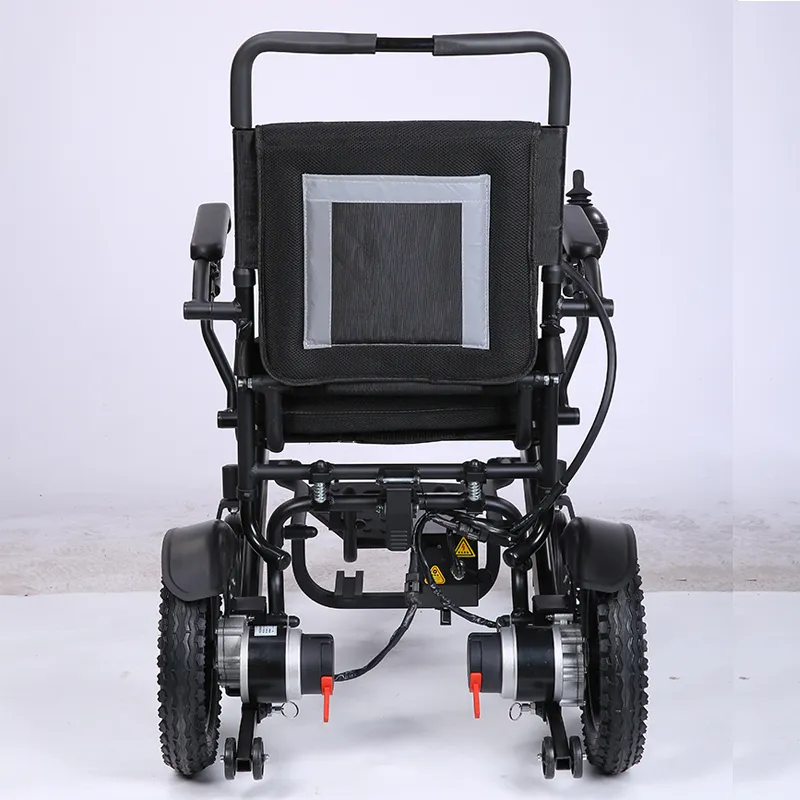

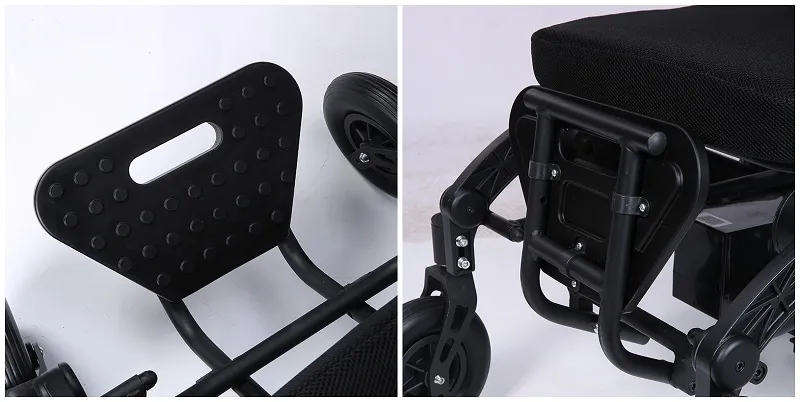

3) Practical Design: Backrest Pocket & Foldable Pedal

Includes a convenient storage pocket on the backrest and space-saving foldable foot pedals.

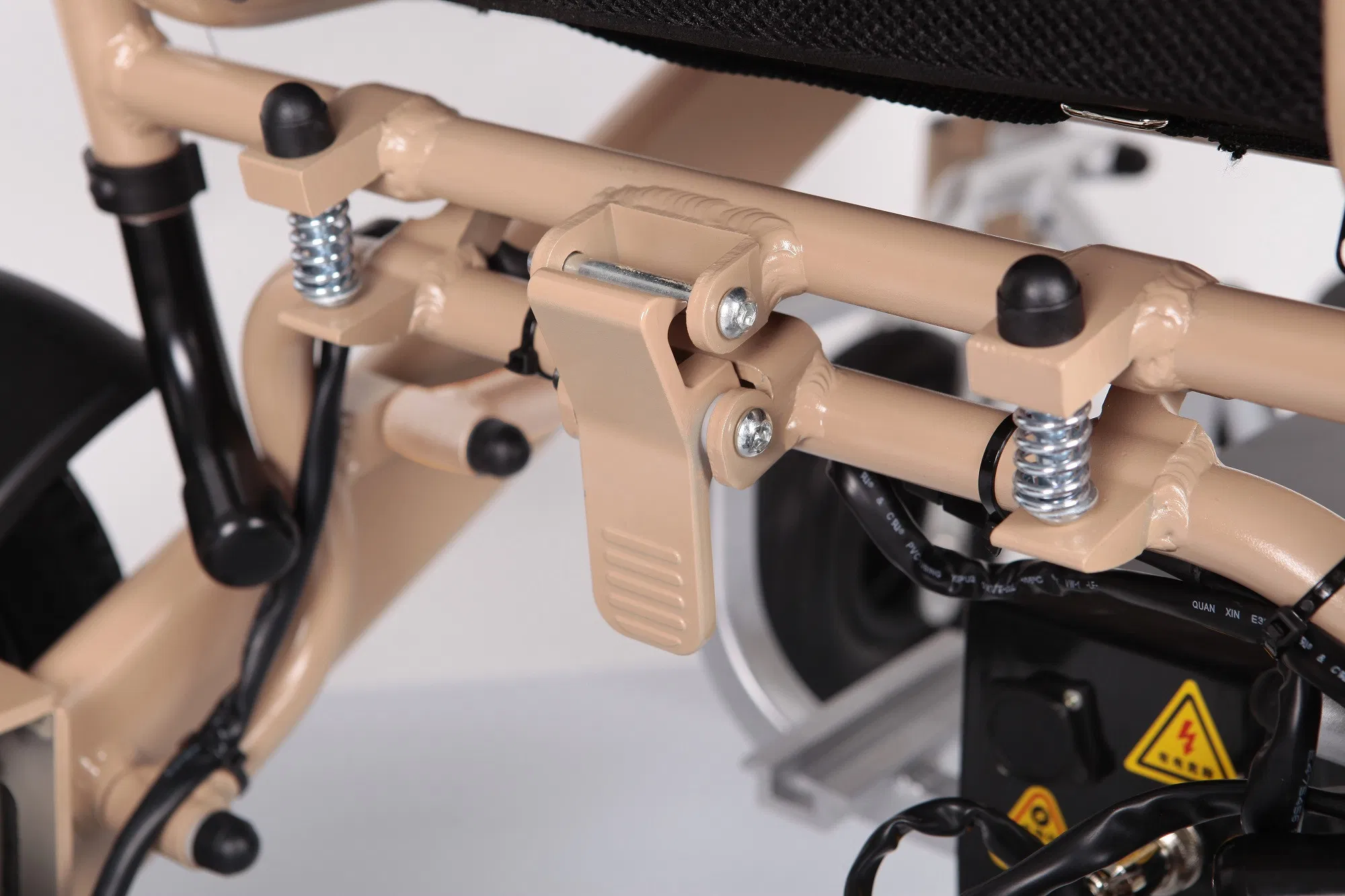

4) Portable and Lightweight Foldable Design

Frequently Asked Questions

Can this electric wheelchair be taken on an airplane?

Yes, the EPW61-601A is designed for travel. It uses lithium batteries and has a folding mechanism that makes it compatible for air travel and easy to fit into a car trunk.

What is the driving range on a single charge?

The standard 13AH lithium battery provides a range of approximately 20 km. If you opt for the 26AH configuration, the range extends up to 28 km.

How does the braking system work for safety?

The wheelchair is equipped with an intelligent electromagnetic brake system. This ensures the chair stops immediately when the joystick is released, even on inclines.

What is the maximum weight capacity of the EPW61-601A?

The reinforced aluminum frame is designed to support a maximum user weight of up to 110 KGS (242 lbs).

How long does it take to fully charge the battery?

A full charge typically takes between 6 to 8 hours using the standard 24V 3A charger provided.

Is the wheelchair suitable for outdoor use?

Absolutely. With its 12-inch rear tires, 40mm ground clearance, and dual 250W motors, it is designed to handle both indoor and outdoor environments comfortably.
