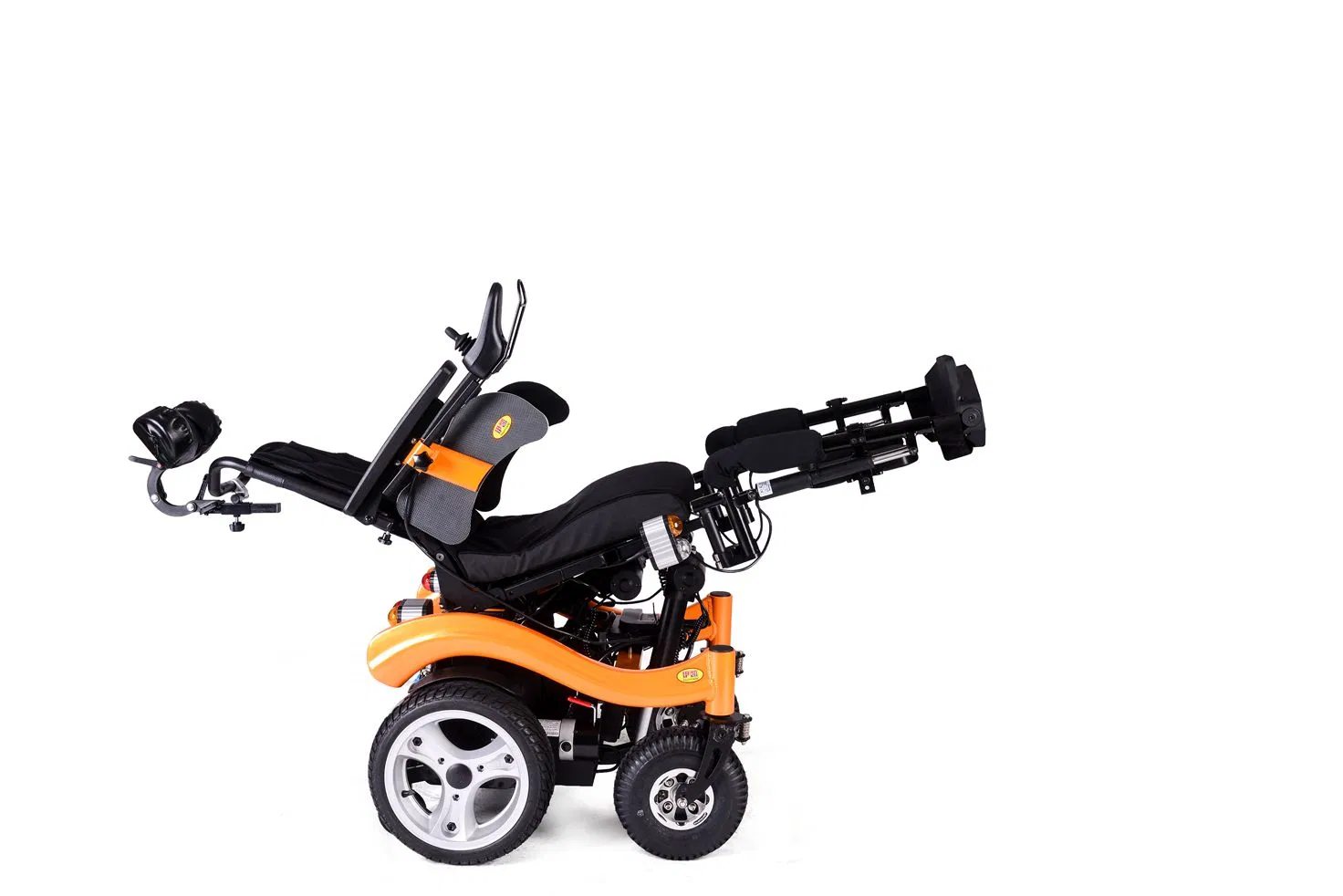

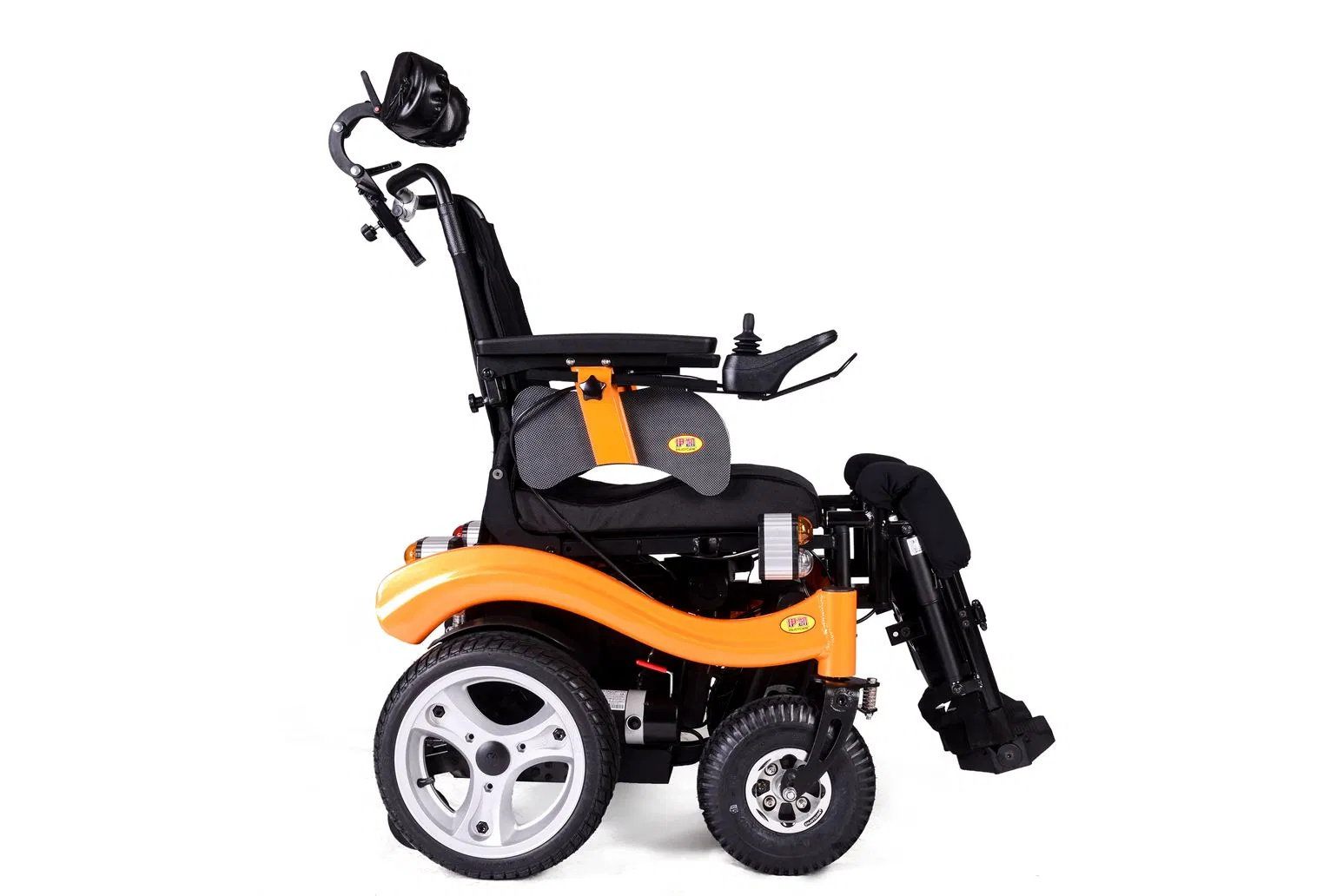

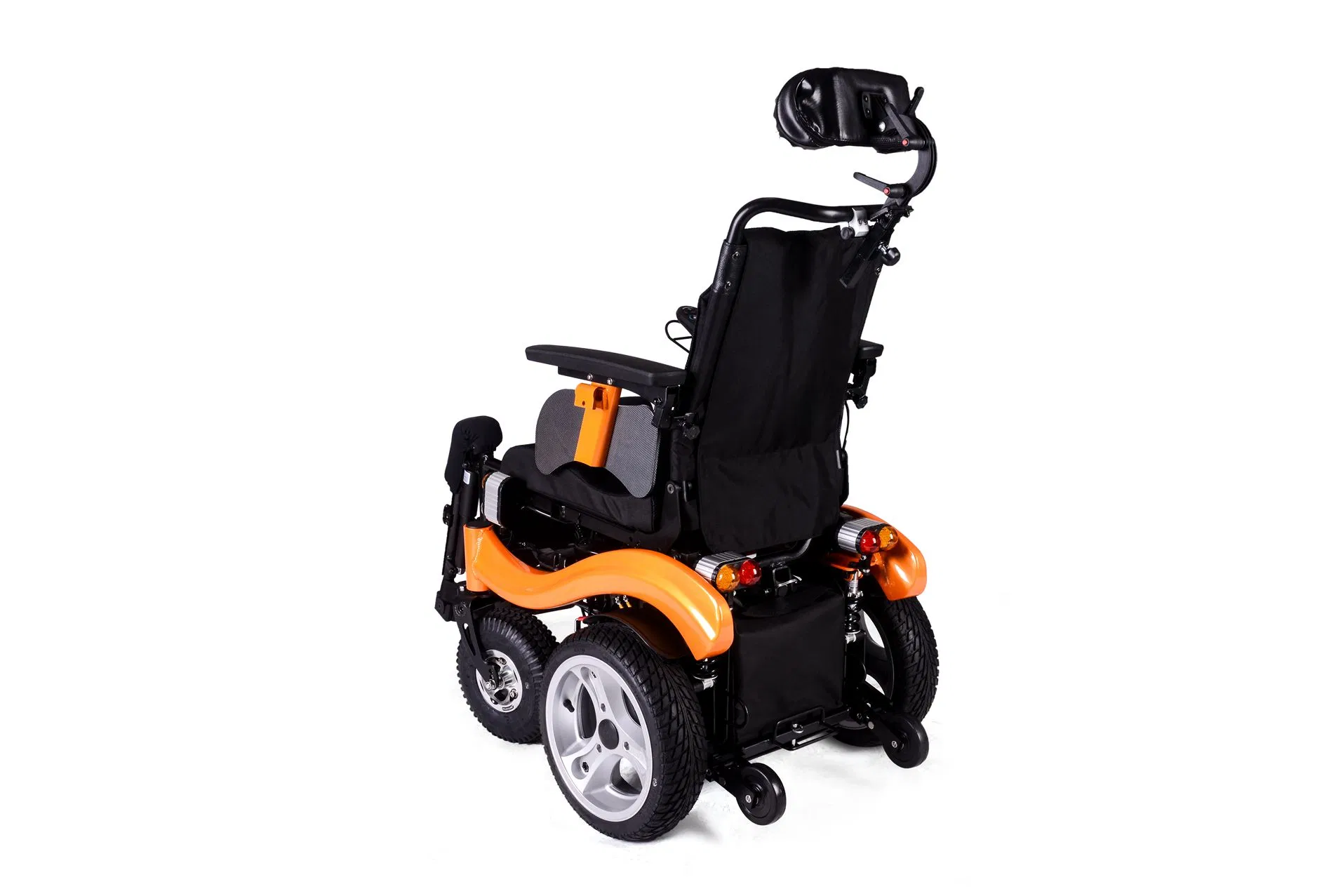

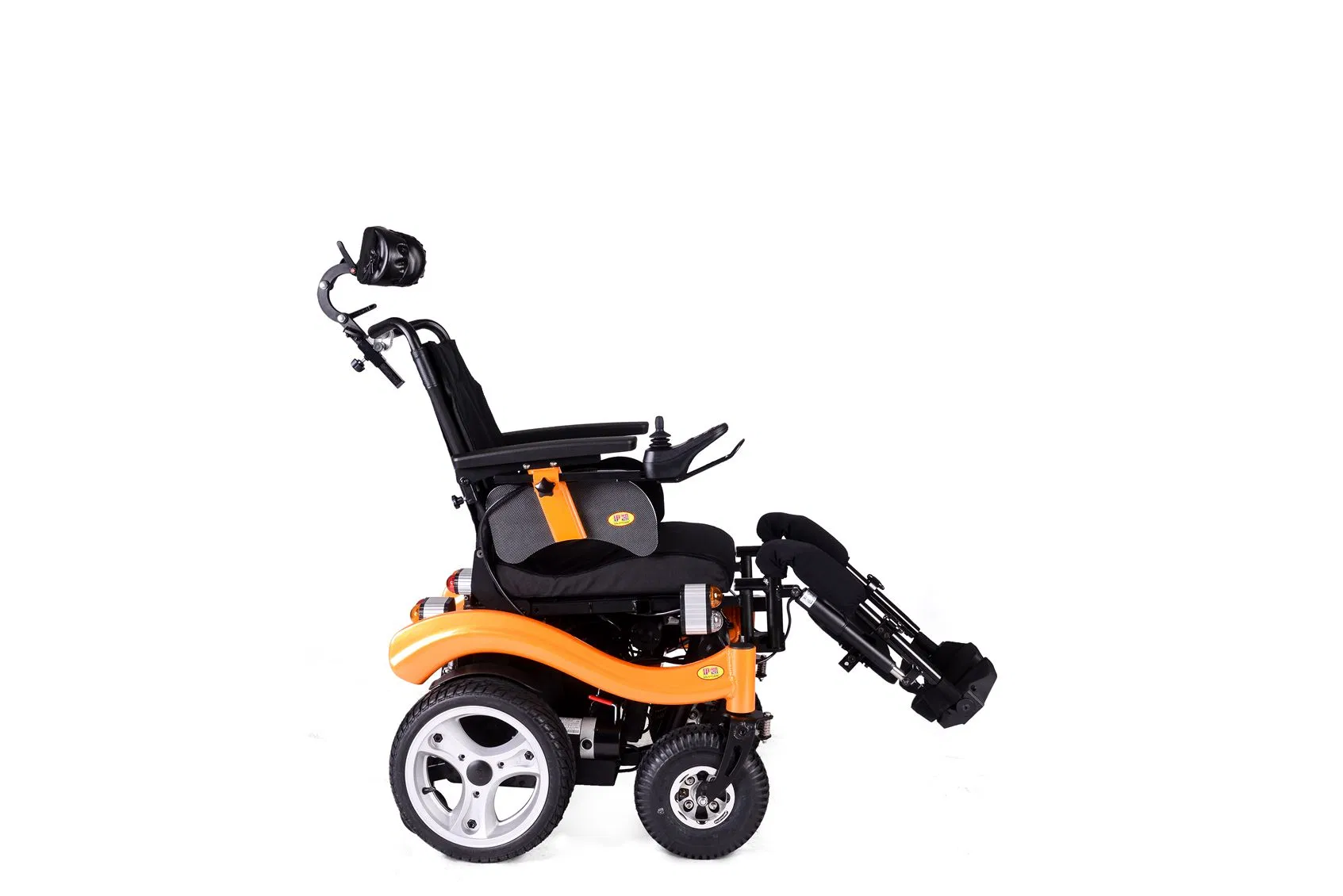

Kidvora Chair
1 / 5

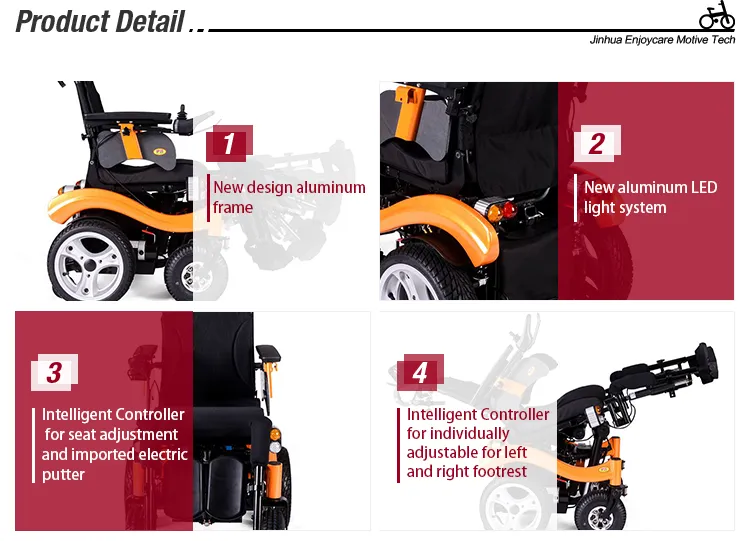

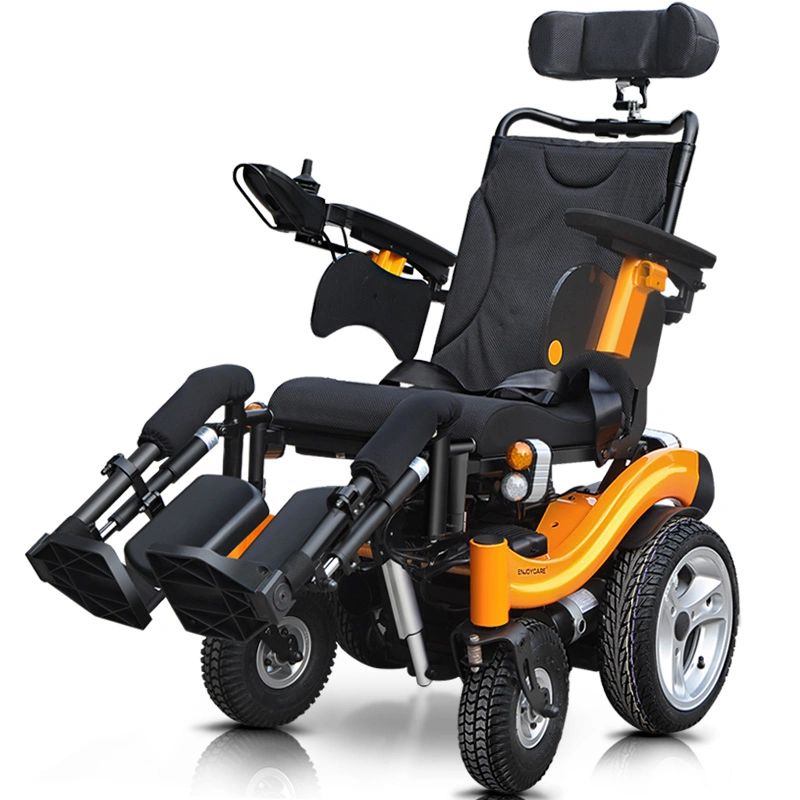

Heavy duty, outdoor use, with big capacity battery, front light, turning light and braking light.

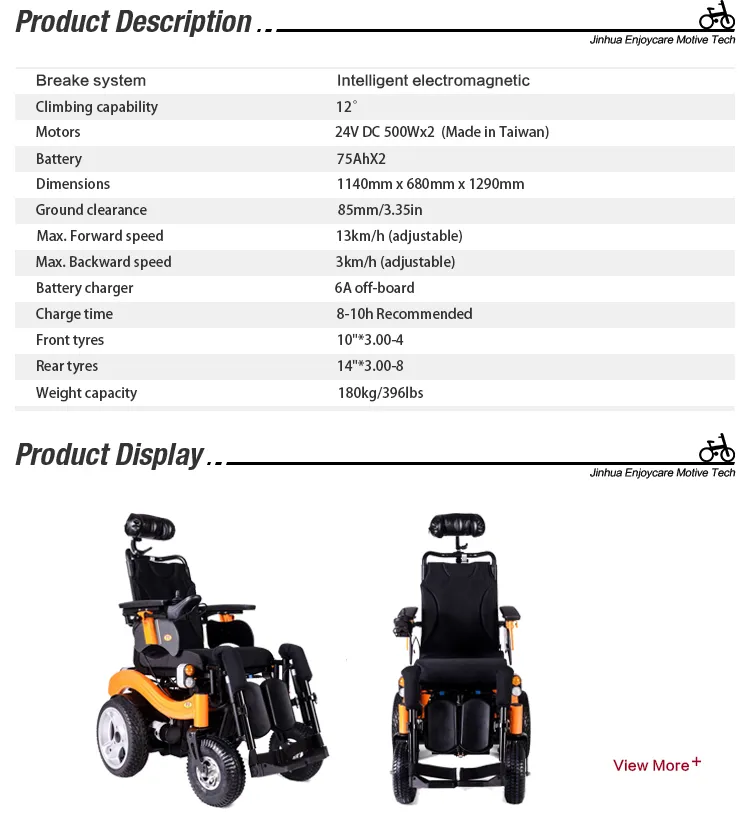

| Dimensions | 1140mm (L) x 680mm (W) x 1290mm (H) 44.88 "(L) x 26.77" (W) x 50.78" (H) |
| Ground clearance | 85mm / 3.35" |
| Max. forward speed | 8.2 mph / 13km/h (adjustable) |
| Max. backward speed | 1.86 mph / 3km/h (adjustable) |
| Mini Turning radius | 850mm / 33.5" |
| Range | 45±5km / 25 mile |
| Climbing capability | 12° |
| Motors | 24V DC500W x 2 |
| Controller | PG or Curtis 75A (Lighting Control) |
| Brake system | Intelligent electromagnetic |
| Battery | 75AH x 2 |
| Charger | HP 8A off-board |
| Charge time | 8-10 H |
| Front Tyres | 10" *3.00-4 |
| Rear Tyres | 15" |
| Weight Capacity | 180kg / 396 lbs |
| Gross Weight | 150KG |
| Net Weight | 81kg / 178 lbs (without batteries) |
| Battery Weight | 24kg / 53lbs x2 pcs (75AH) |
| Packing size Body | 800x 710 x770 mm (Add 100mm/4inch if include fork feet) |
| Qty/20' | 60 PCS |
| Qty/40'HQ | 126 PCS |
